Characteristic
■ convenient installation
■ High strength, high pressure resistance
■ integrated structure
■ Can work stably for a long time
■ fast response
■ structural reliability
Product overview

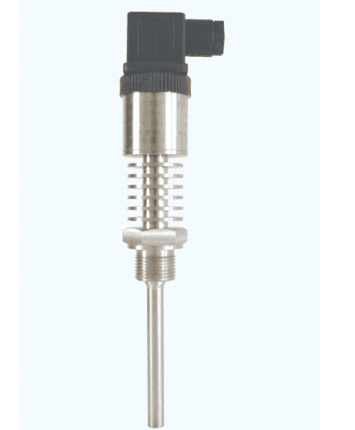

PT2 (common) removable joint temperature transmitter is a transmitter specially designed for easy installation. The transmitter adopts high-performance, high-reliability imported platinum resistance, after precise temperature and nonlinear compensation, using modular signal processing technology with good performance, measuring and calibrating the medium temperature, and outputting industrial control standard signals.
The product shell adopts all-stainless steel integrated processing, which has the characteristics of small volume and fast thermal response; the wire adopts special shielded wire, which has a wide temperature range; the product is easy to install and has extremely high vibration resistance and impact resistance.
Performance parameter
| range ability | -50℃～250℃ |
| supply output | 4～20mA(16～36VDC) |
| precision | ±0.5%FS |
| sensitive element | Pt100 A级 |
| dielectric strength | 100MΩ/250VDC |
| response time | ≤30s（10%-90%） |
| long-term stability | ≤0.2%FS/year |
| Insertion diameter | Φ8mm |
| storage temperature | -40℃～85℃ |
| electrical connection | Großmann |
| level of protection | IP65 |
| materials | 304 |
| Maximum installation torque | 25Nm |

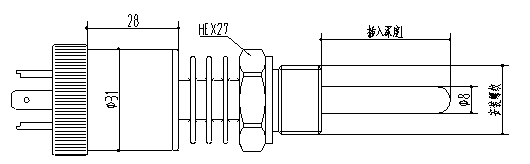

Utline size
size drawing unit：mm

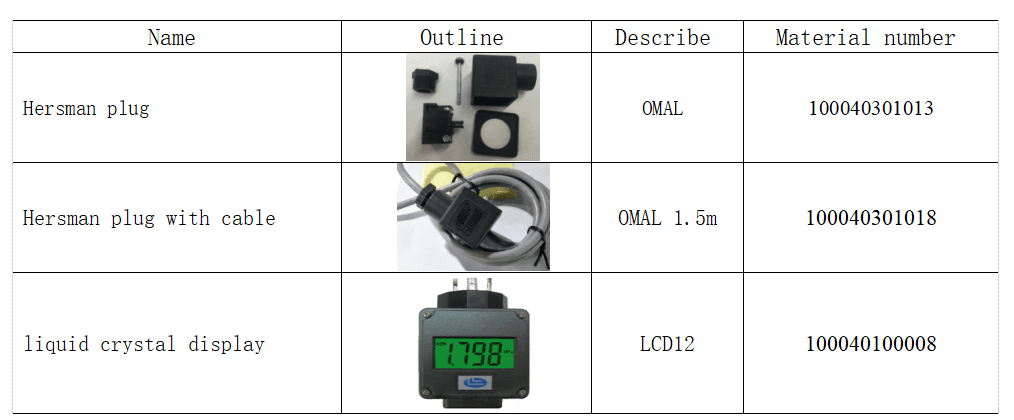

Accessories
