For food industry and aseptic processing applications
■ 316L stainless steel isolation diaphragm structure
■ High precision, all stainless steel structure
■ Strong anti-interference, good long-term stability
■ Zero and full range adjustable
■ Diversified form structure, easy to install and use
■ Multiple aseptic process connections for process temperatures up to 150℃
■ Surface roughness Ra<0.38μm
■ A variety of electrical connectors available
Product overview

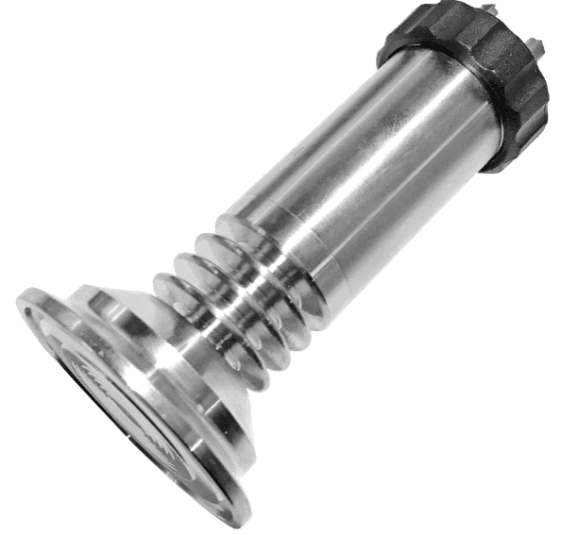

PM35 flat membrane pressure transmitters are suitable for food, beverage, pharmaceutical and bioengineering applications. The direct welding of the all-metal flush diaphragm to the process connection ensures a precise connection between the process connection and the measuring diaphragm. Therefore, no additional sealing gasket is required, and no measurement dead zone is guaranteed.
The diaphragm made of stainless steel 316L separates the measuring medium from the pressure sensor. The process pressure from the diaphragm to the piezoresistive sensor is transmitted statically through the filling fluid, which passes the sanitary approval.
Performance Parameter
| range ability | -100kPa…0～35kPa…2.5MPa |
| pressure type | gauge pressure, absolute pressure, seal pressure |
| precision | 0.5%FS |
| slow-moving | 0.1%FS |
| repetitiveness | 0.1%FS |
| temperature excursion | 35kPa：±3%FS(0℃～60℃） other：±1.5%FS(-10℃～70℃） |
| response time | ≤1ms（Up to 90% FS） |
| overload pressure | Reference Range Selection Table |
| service life | ≥1×106force-circulation |
| environment temperature | -20℃～85℃ |
| medium temperature | -30℃～125℃ |
| storage temperature | -40℃～125℃ |
| EMC | noise immunity:IEC 61000-6-2, radiation:IEC 61000-6-3 |
| insulation resistance | ≥100MΩ/250VDC |
| vibration performance | sinusoid：20g, 25Hz～2kHz；IEC 60068-2-6 |
| random：7.5grms, 5Hz～1kHz；IEC 60068-2-64 | |
| levelof protection | IP67（Without connectors） |
| surge | IEC 61000-4-5 3step |
| voltage resistance | current output：500V/AC 1min voltage output：250V/AC 1min |
| static | IEC 61000-4-2 4step |
| media compatible | Various media compatible with 316L stainless steel |
| explosion-proof grade | Intrinsic safety explosion-proof Exia II CT6 (only for 4~20mA) |
| suttle | 300～350g |
