Characteristic
■ Four-digit LCD display real-time pressure, convenient for customers to observe
■ Multiple pressure unit switching, reset, backlight, switch and other functions
■ Low power design, battery power, up to 24 months of battery life
■ Built-in high-precision pressure sensor, high precision
Product overview
PM58 intelligent digital pressure gauge is a high-precision intelligent digital pressure gauge, built-in high-precision pressure sensor, can accurately display the pressure in real time, and has the characteristics of high precision and good long-term stability.This digital pressure gauge is equipped with large size LCD display, with reset, backlight, switch, unit switch, low pressure alarm and other functions, simple operation, easy installation.
The product adopts 304 stainless steel shell and joint, good shock resistance, can measure gas, liquid, oil and other stainless steel non-corrosive medium.
PM58 intelligent digital pressure gauge is suitable for portable pressure measurement, equipment matching, calibration equipment and other measurement fields.
Performance Parameter
| range ability | -100kPa…0～10kPa…100MPa |
| pressure type | gauge pressure, absolute pressure, seal pressure |
| accuracy class | 0.5%FS |
| backlighting color | blue backlight |
| operating temperature | -10～70℃ |
| compensate for temperature | 0～60℃ |
| electrical protection | Anti-electromagnetic interference design |
| sample frequency | 5next/second |
| overload pressure | 150%FS |
| long-term stability | ±0.2%FS/year （model） |
| battery powered | Two AA batteries |
| texture | Case stainless steel, isolation diaphragm 316L |
| media compatible | Various media compatible with 316 stainless steel |

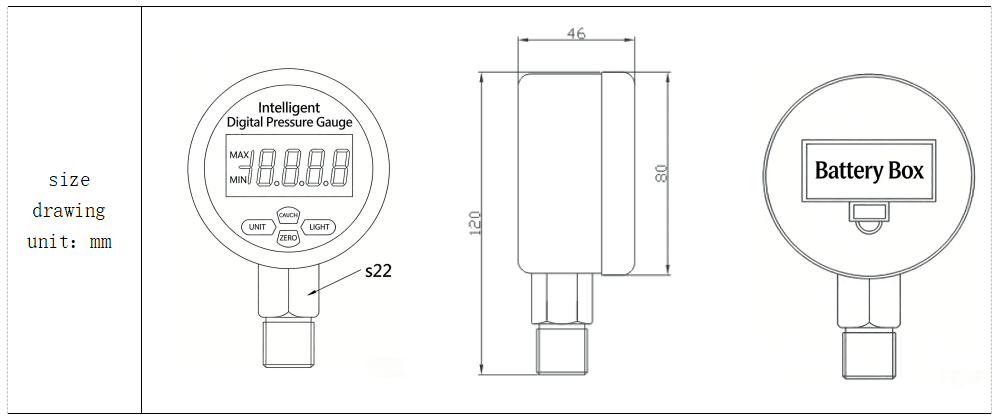

Appearance structure
