PM03 Universal Pressure Transmitter

Characteristic

■ 316L stainless steel isolation diaphragm structure.

■ High precision, all stainless steel structure.

■ Small size, light weight

■ Strong anti-interference, good long-term stability

■ Diversified form structure, easy to install and use

■ Wide measuring range for absolute pressure, gauge pressure and seal pressure

■ Anti-vibration, anti-shock

■ Zero and full range adjustable

product overview

PM03 economical pressure transmitter, pressure sensitive core adopts diffusion silicon core, internal dedicated integrated circuit converts millivolt signal of sensor into standard current signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC, etc. Small size, light weight, all stainless steel sealing structure, can work in corrosive environment. This product is easy to install and simple, with extremely high anti-vibration and anti-impact performance, widely used in process control, aviation, aerospace, automotive, medical equipment, HVAC and other fields.

Performance parameter
range ability	-100kPa…0～35kPa…100MPa
pressure type	gauge pressure, absolute pressure, seal pressure
precision	0.5%FS
slow-moving	0.1%FS
repetitiveness	0.1%FS
temperature excursion	35kPa：±2%FS(0℃～60℃） other：±1.5%FS(-20℃～85℃）
response time	≤1ms（rise to 90%FS）
overload pressure	Reference Range Selection Table
service life	≥1×10⁶force-circulation
environment temperature	-20℃～85℃
medium temperature	-30℃～105℃
storage temperature	-40℃～125℃

Performance parameters (continued)
EMC	noise immunity:IEC 61000-6-2, radiation:IEC 61000-6-3
insulation resistance	≥100MΩ/500VDC(200MΩ/250VDC)
vibration performance	sinusoid：20g, 25Hz～2kHz；IEC 60068-2-6
	random：7.5grms, 5Hz～1kHz；IEC 60068-2-64
impact resistance	impact：200g/1ms；IEC 60068-2-27
	freely falling body：1m；IEC 60068-2-32
levelof protection	IP65
surge	IEC 61000-4-5 3step
voltage resistance	current output：500V/AC 1min voltage output：250V/AC 1min
static electricity	IEC 61000-4-2 4step
media compatible	Various media compatible with 316L stainless steel
hexagonal	HEX27
explosion-proof grade	Intrinsic safety explosion-proof Exia II CT6 (only for 4~20mA)
suttle	150～180g

Output and supply
code	B1	B3	B2	B7	B12	B6
output	4～20mA	0～5V	1～5V	0～10V	1～10V	0.5～4.5V R/M
power supply	12～30VDC	12～30VDC	12～30VDC	12～30VDC	12～30VDC	5VDC

Electrical connection and wiring mode

Electrical connections and wiring methods (continued)

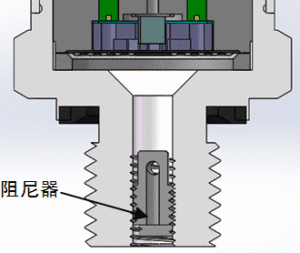

Selection of damper

Use

Cavitation, hammer and pressure spikes may occur in air or liquid systems with varying flow rates. such as rapid closing of valves or starting and stopping of pumps.

These problems can occur at the inlet and outlet even at fairly low operating pressures.

medium conditions

In liquids containing particles, nozzle clogging may occur. Vertical mounting of the transmitter minimizes the risk of clogging because fluid flow is limited to the initial start-up phase, the volume at the rear of the nozzle is fixed, and the nozzle bore is relatively large (1.2 mm).

The viscosity of the medium has little effect on the response time. Even if the viscosity reaches 100 CST, the response time will not exceed 4 ms.

accessories

name	outline	describe	material number
M4 Damper		1.SeeSelectionof Damper	100030100027
LCD12 Liquid crystal display		1.LCD(liquid crystal) display 2. Green backlight	100040100008

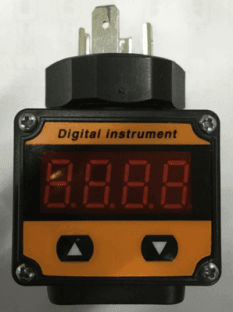

BS-6 Digital Display Meter		1.digitaltube display 2. Red backlight	100040101000
Domestic Hersman plug		domestic	100040301005
Imported Hersman plugs		import	100040301013

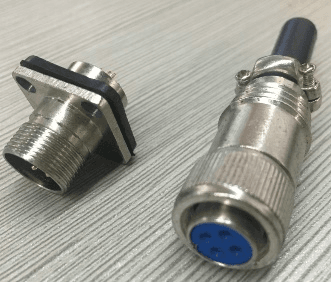

X12 small round shape Plug socket (kit)		Thread M12×0.75	100040304005

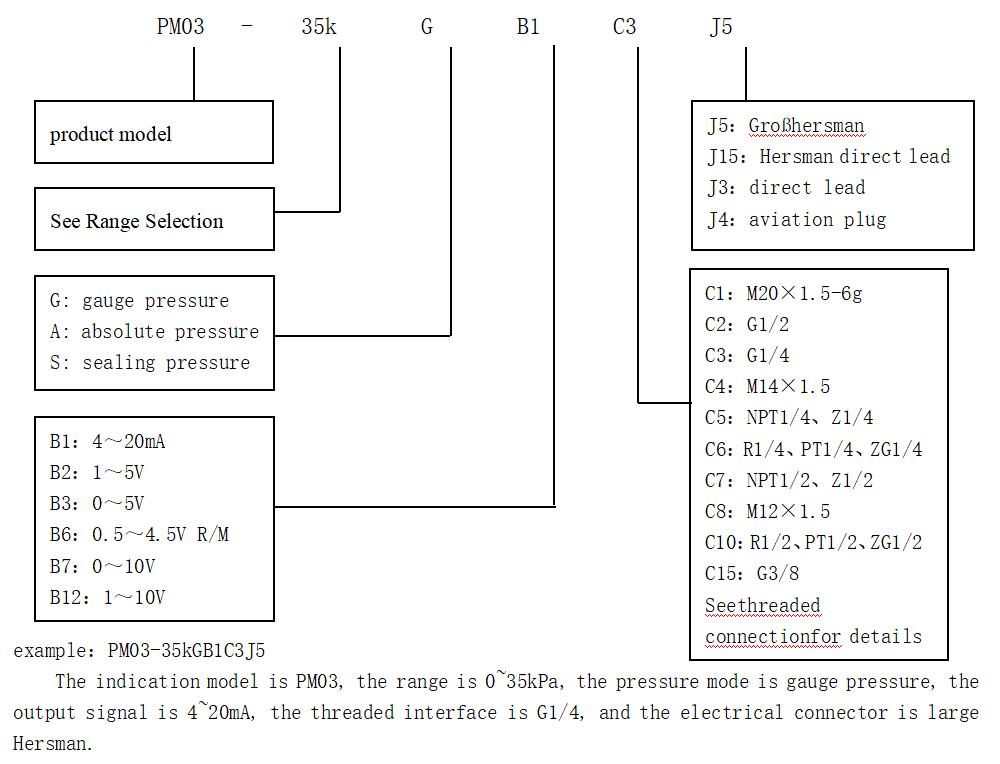

model selection

order alerts

1、Please pay attention to the compatibility between the tested medium and the contact part of the product when selecting.

2、The range is between 1~35kPa, which can be customized (range ≤6kPa, pressure sensor without oil filling is selected, and the measurement medium must be pure gas).

3、Range between 25~100MPa, the application site has super pressure shock, can be customized.
