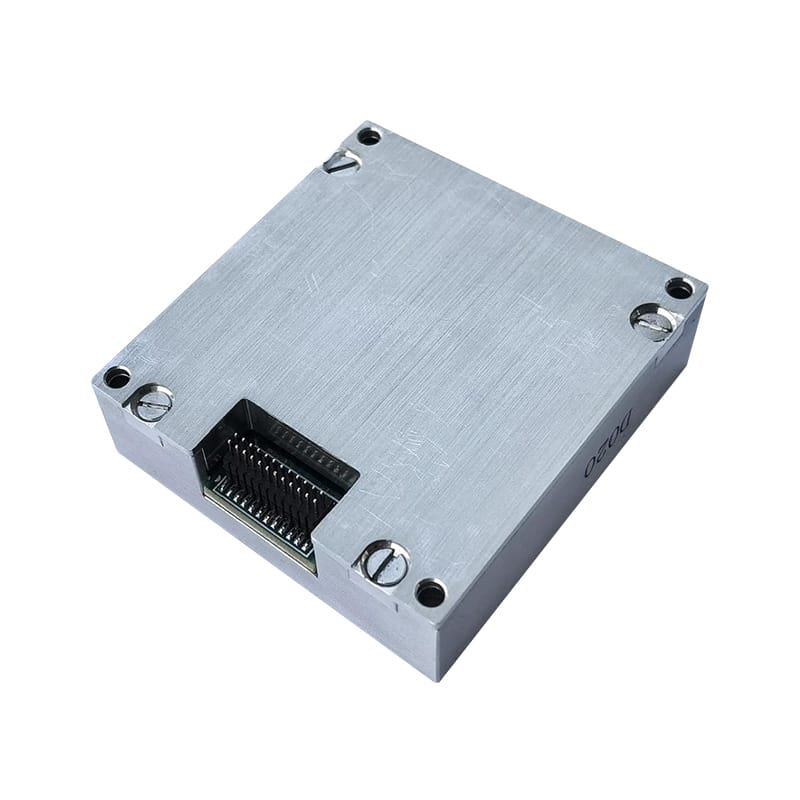

The IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS) with built-in high-performance MEMS sensor inside,The utility model has the advantages of high reliability and strong environmental adaptability.
The IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS) with built-in high-performance MEMS sensor inside,The utility model has the advantages of high reliability and strong environmental adaptability.
-Index Parameter
| Model | HG4930C | 16497C | AHRS563 | |
| Axis No. | 3axis | 9+ 1axis | 9+ 1axis | |
| Gyro | Range / º/s | ±200 | 500 | ±250 |
| Bias instability /Allan,º/h | ≤0.2 | ≤ 1 | ≤4 | |
| Bias stability in full temp. /10s/ º/h | ≤0.5 | ≤5 | ≤ 10 | |
| Bias repeatability / º/h | ≤ 1 | ±0.03 | ±6 | |
| Bias change in full temp. / º/h | ≤2.5 | ±0.06 | ±0.07 | |
| Random walk / °/√h | 0.02 | 0.1 | 0.35 | |
| Scale factor nonlinearity / ppm | ≤ 100 | 0.02 | ≤200 | |
| Bandwidth / Hz | 100 | 200 | 150 | |
| Acc. | Range / g | ±30 | 16 | *±4 / ±6 |
| Bias stability /Allan / mg | 0.03 | 0.1 | 0.06 | |
| Bias repeatability / mg | ≤2 | ≤2 | ±0.1 | |
| Bias error in full temperature /mg | ≤ 1.5 | ≤2 | ≤2 | |
| Random walk/m/s/√h | ≤0.01 | ≤0.03 | ≤0.04 | |
| Scale factor nonlinearity / ppm | ≤200 | ≤200 | ≤300 | |
| Bandwidth / Hz | 100 | 200 | 150 | |
| Attitude | Pitch & Roll / 。 | – | *2 /8 | ≤0.1 |
| Heading / 。 | – | 0.1 | ≤ 1 | |
| Magnetic. | Range / gauss | – | Yes | 2 |
| Interface | 1-way / Kbps | RS422 | RS422 | RS422/CAN/RS232 |
| Update frequency / Hz | 125/250/500 | 800 | ||
| Filter bandwidth / -3dB/Hz | 16/33/66/131 | |||
| Electrical | Voltage / V | 5 | 5 | *5/9~30 |
| Power consumption / W | ≤ 1.5 | ≤2W | ≤ 1.5W | |
| Structure | Size /L*W*H / mm | 44.8×38.6×20 | 24×22.4×9 | 45×39×28 |
| Weight / g | ≤ 120 | ≤55 | ≤85 | |
| Environm. | Working temperature / ℃ | -40 ~ 85℃ | ||
| Vibration / Hz/g | 10~2000Hz ，6.06g | |||
| Impact | 15000g，4ms | 1000g ，0.5ms | 1000g ，0.5ms | |
+Factory default configuration <>The system automatically switches between the two modes
