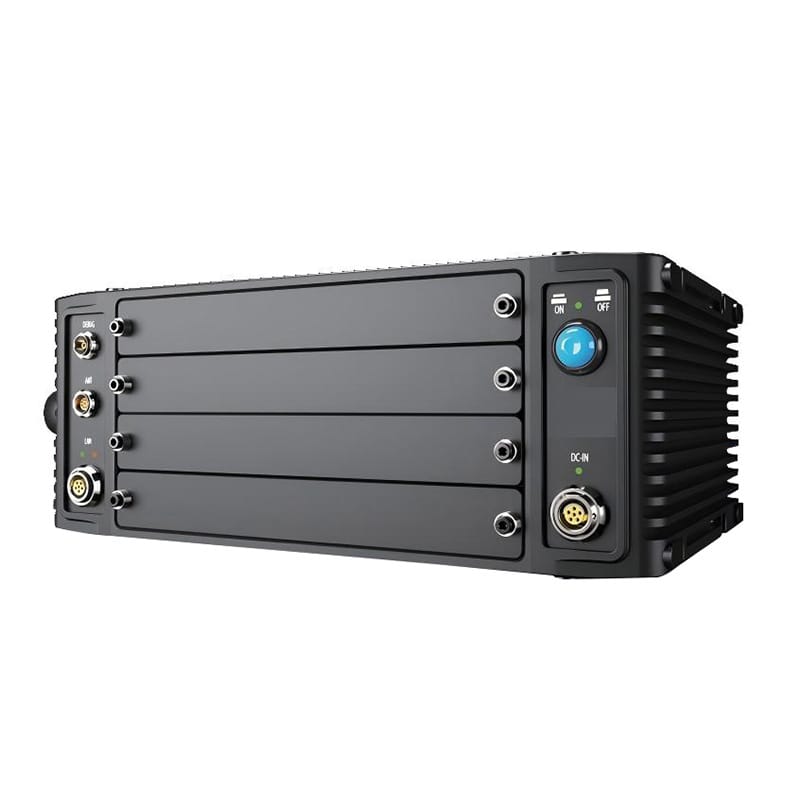

EGT-M6 series multifunctional data acquisition terminal is an intelligent edge acquisition device integrating high-precision acquisition, edge computing, wireless transmission and cloud edge collaboration.
EGT-M6 series products adopt rugged structure design, which can work stably for a long time under extreme environments such as strong vibration, high and low temperature, etc. It has the characteristics of superior
acquisition performance, compact size, high channel density, various test types and convenient operation.

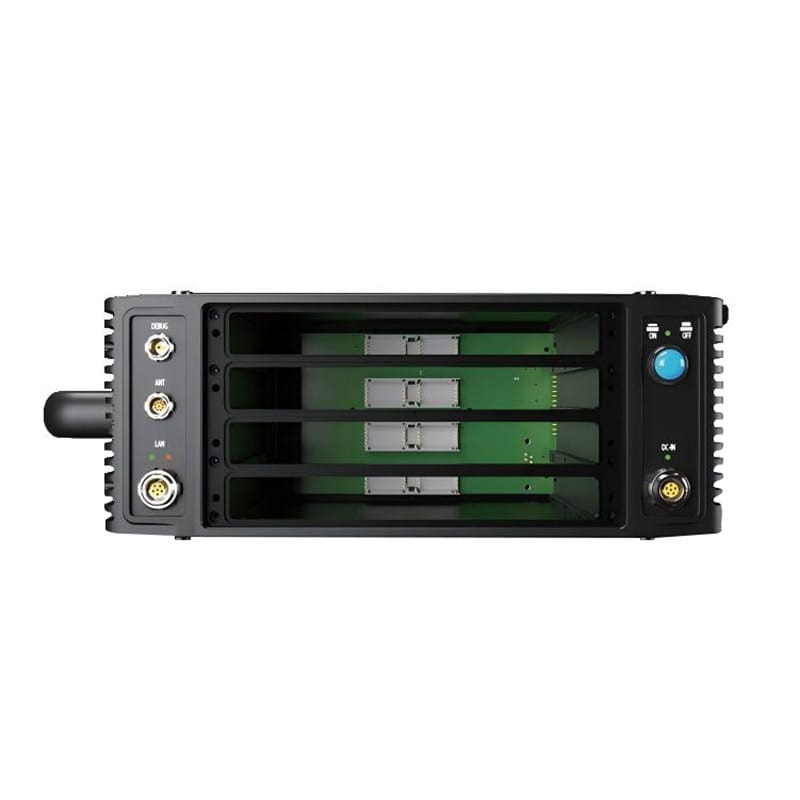

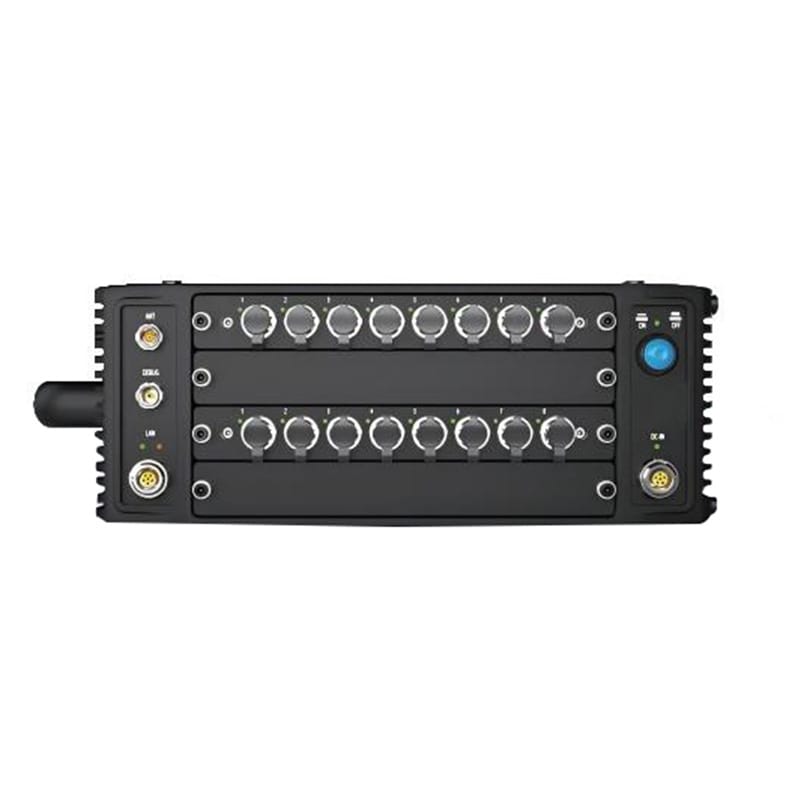

EGT-M6 series products adopt modular quick-release structure, a single terminal can support up to 4 acquisi- tion cards, and different types of acquisition cards can be selected according to user needs to quickly build test systems.
EGT-M6 series products are equipped with network interface, large-capacity storage disk and high-perfor- mance battery, and use Gigabit Ethernet to build a network-based distributed intelligent measurement and control system, providing efficient and convenient technical means for large-scale test, industrial monitoring, remote telemetry, etc.

-Application Scenarios
· Test Field Environment
· On-Board And On-Board Opera- Tion Monitoring
· Geological Exploration Safety Warning
· Rotating Machin-Ery Fault Moni-Toring
· Industrial Internet Of Things Distribut-Ed Monitoring

-Product Feature
High-Precision Acquisition: Synchronous acquisition of all channels, 500kSPS@24bits resolution, measurement error ≤0.05%FS
Acquisition Signal Type: Vibration, shock, tempera-ture, current, voltage, speed, strain, etc.
Synchronism: Synchronization accuracy terminals ≤±100ns
DR: 120dB
Small And Light: Fully loaded with 4 acquisition cards weighing less than 5kg, equipped with a three-proof trolley case, easy to quickly store and deploy
Firm Structure: 7075 aviation hard anodized
High-Speed Sampling: Simultaneous acquisition of all
1MSPS@16bits resolution
Wide-Temperature Design: -20℃~60℃
Heterogeneous Computing Architecture: Mega-level programmable gate array for high-speed signal preprocessing, ARM
Cortex A9 dual-core for real-time data processing
Customizing The Underlying Algorithm: Customizable underlying hardware kernel signal processing algorithm and control timing, can meet the fast calculation, synchro-nous response test require-ments
Cloud-Edge Collaboration: Key data automatic communication
Intelligent Edge: Dynamic, Acoustic and Rotating Mechanical
Feature Extraction and Analysis
Fast And Flexible Networking: Gigabit Ethernet, Wireless Cascade
Protection Design: IP67 waterproof connec tor and waterproof cap, -IP65 protection
High-Precision Positioning: Extended RTK global positioning, positioning accuracy 2~5cm
Dual Power Redundancy Design: Built-in lithium battery,
external adapter power supply
