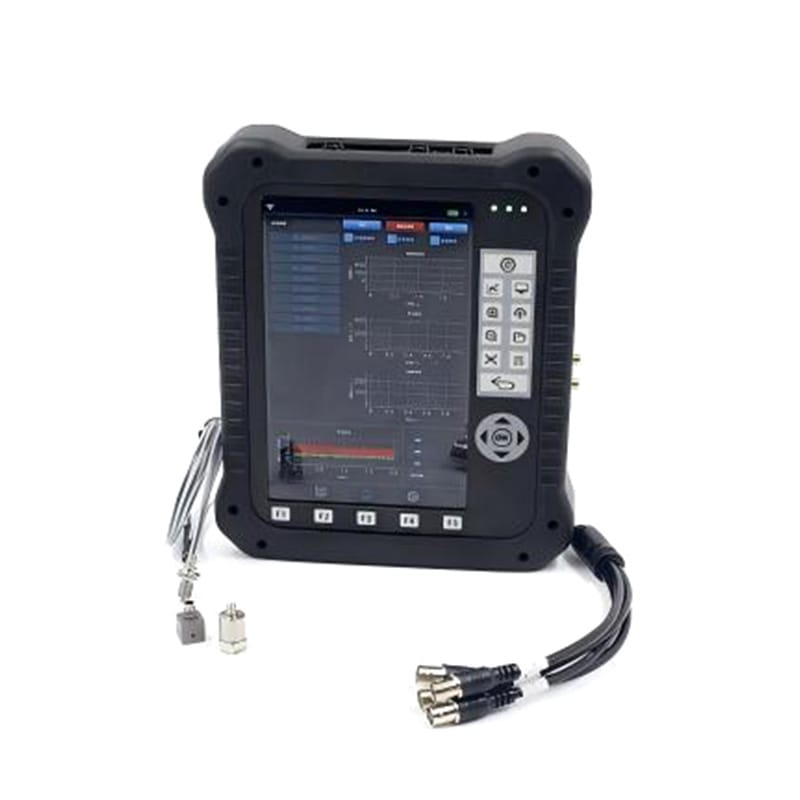

EGT-H5 Series portable data acquisition and analysis terminal adopts compact structure, with display screen and operation button, built-in high-precision acquisition unit, integrat- ing signal acquisition, waveform display and data analysis.
EGT-H5 Series portable data acquisition and analysis terminal adopts compact structure, with display screen and operation button, built-in high-precision acquisition unit, integrat- ing signal acquisition, waveform display and data analysis. it isa high-integration portable intelligent edge computing terminal designed for field test and mobile monitoring scenari- os.
-Application Scenarios
· Onboard, on-board operation moni-toring
· On-line monitoring safety early warning
· Rotating machin-ery fault monitoring
· Industrial internet of things distribut- ed monitoring
-Product Feature
1. Multiple Signal Processing Capabilities
Compatible With Multiple Signal Types
· ICP/IEPE, speed, voltage, etc.
Edge Computation Engine
· Millions of gate FPGA real-time signal processing
· Dual-core ARM Cortex operation
· Linux RTOS with custom algorithms
2. Smart Iot Extension
Location And Communication
· Dual-frequency GNSS, support RTK, can achieve centimeter-level positioning
· Optional 4G/5G/WIFI three-mode communication, support MQTT/OPC protocol
Rapid Customization
· Python/MATLAB API support second- ary development
· Signal interface panel can be custom- ized
· Physical button function can be flexibly configured
3. Integrated Mobile Design
Man-Machine Interaction
· 8 inch IPS LCD screen, support multi-touch
· 20 physical buttons plus touch screen dual operation mode
Intelligent Power Management
· Full channel load, 8 hours of battery life
· Support external power supply, built-in lithium battery automatic switching
-Technical Parameters
| MODEL | EGT-H5212 | EGT-H5214 | EGT-H5218 |
| Number Of Channels | 2-Channel | 4-Channel | 8-Channel |
| Input Range | ±15V | Sampling Precision | ≤0.1%FS |
| Input Type | Differential Voltage, IEPE | Filtering Mode | anti-aliasing filter |
| Coupling Mode | AC, DC | Cut-Off Frequency | (-3dB) 0.49fs |
| Iepe Excitation | 2~20mA/24V | DR | ≤120dB |
| Physical Buttons | 20 keys | Expansion Channel | 1-way speed measurement |
| Touch Lcd Screen | 8-inch，1280*800，350nit | Storage Capacity (Standard) | 64GB, scalable |
| Structural Material | Aluminum alloy (anodized) | Connector Type | Metal push-pull self-locking |
| Capture Resolution | 24bit | Order Number | EGT-H5-2/4/8-64GB/256GB/512GB/1TB-4G/5G/WIFI/GNSS/RTK |
| Sampling Rate | 100kHz |
