Featuring high reliability, modular scalability, and excellent thermal design, its standard 1U height and 19-inch width make it compatible with international standard racks, ideal for embedded control systems, edge computing platforms, and mission-critical industrial scenarios.
Product Overview：

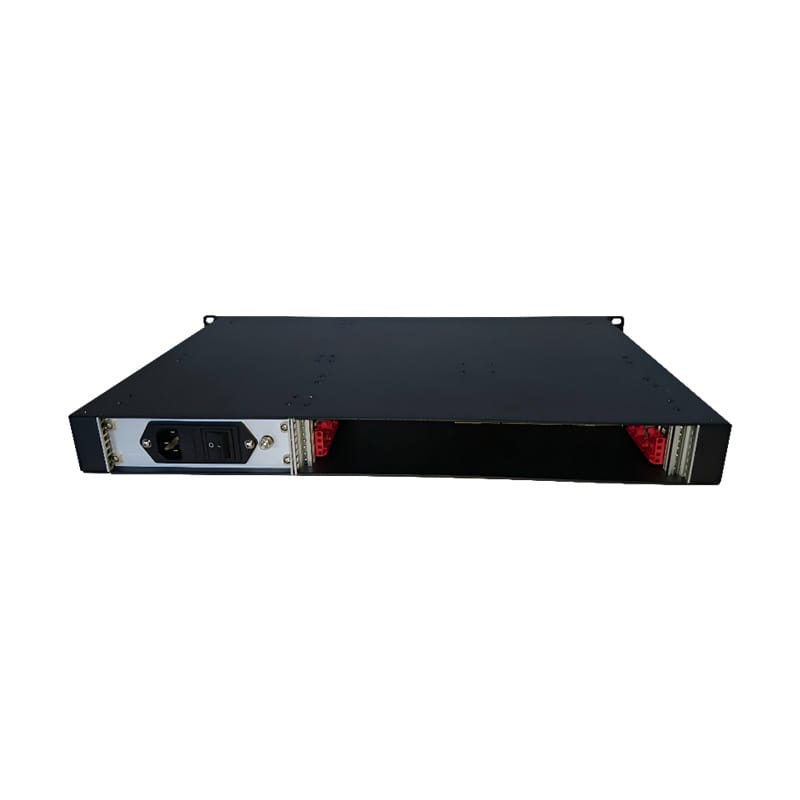

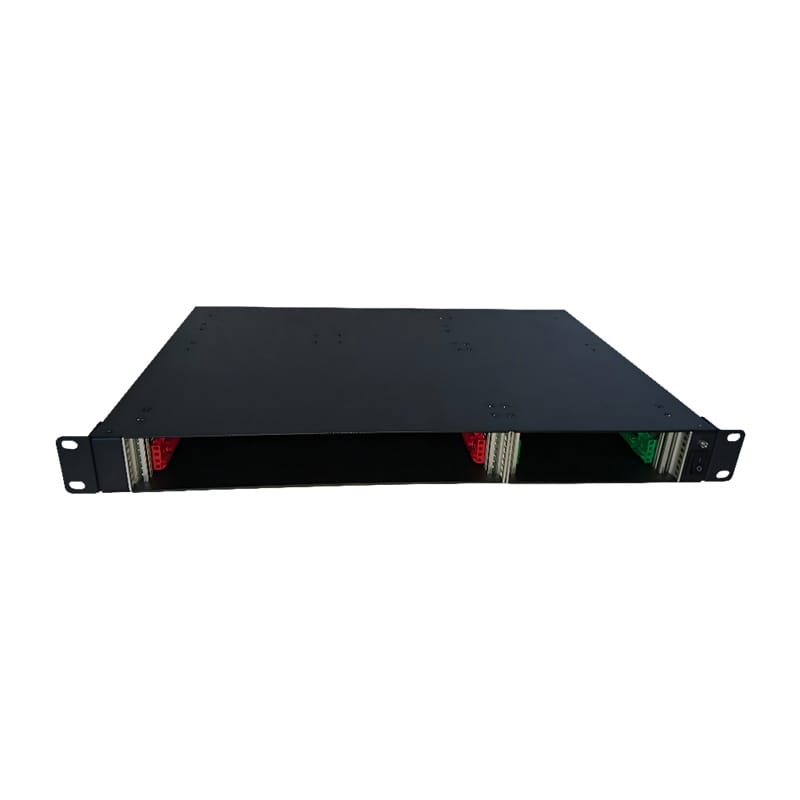

1.Standard 1U 19″System Platform
2.Standard 6U2 slot CPCI backplane，support CPCI-E、CPCI、VME Bus
3.Support CPCI power supply
| Specifications | ||
| chassis structure | size | height * width * depth：44.5MM(1U)*482.6mm(19″)*294MM |
| box | Imported profile structure, shell sheet metal, spraying or painting process | |
| backplane | Standard 6U2 slot 64-Bit CPCI Backplane Support CPCI power supply | |
| Cooling system | left air inlet, right air outlet, 3 40 * 40 * 25mm 12V DC fans on the left and right | |
| environmental parameters | operating temperature | 0℃—+50℃ |
| Storage temperature | -40℃—+85℃ | |
| relative humidity | 10-90%，non-freezing cream | |
| Model | Order information |
| SYS0108H-II | 6u2 slot CPCI backplane, support front and rear card insertion |
